Powering the Future with Advanced Battery Energy Storage Systems
Battery Cell 280 Ah
Cycle Life 8,000-10,000

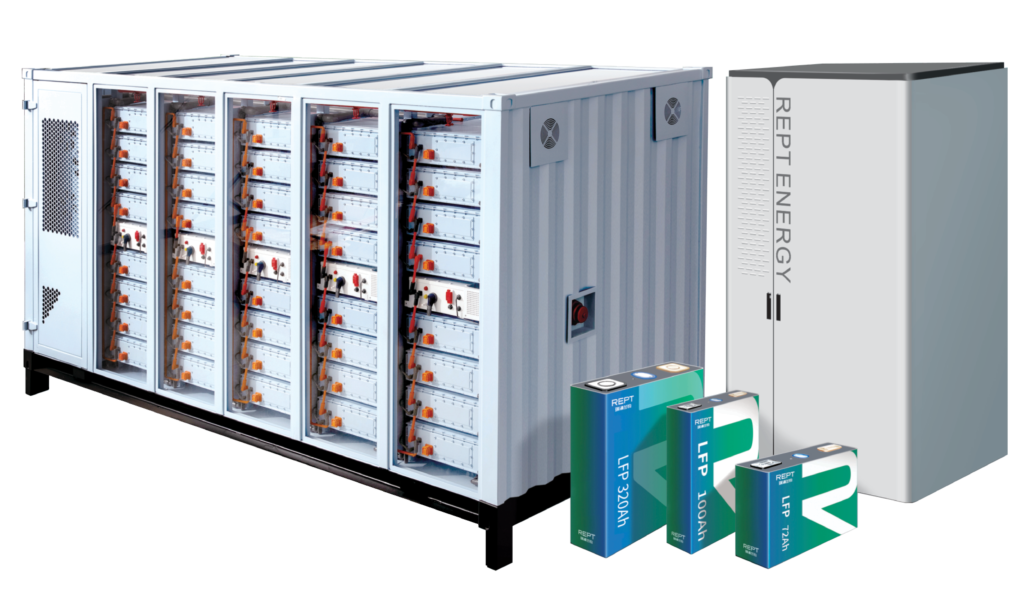

BESS Container 20 fts with Liquid Cooling

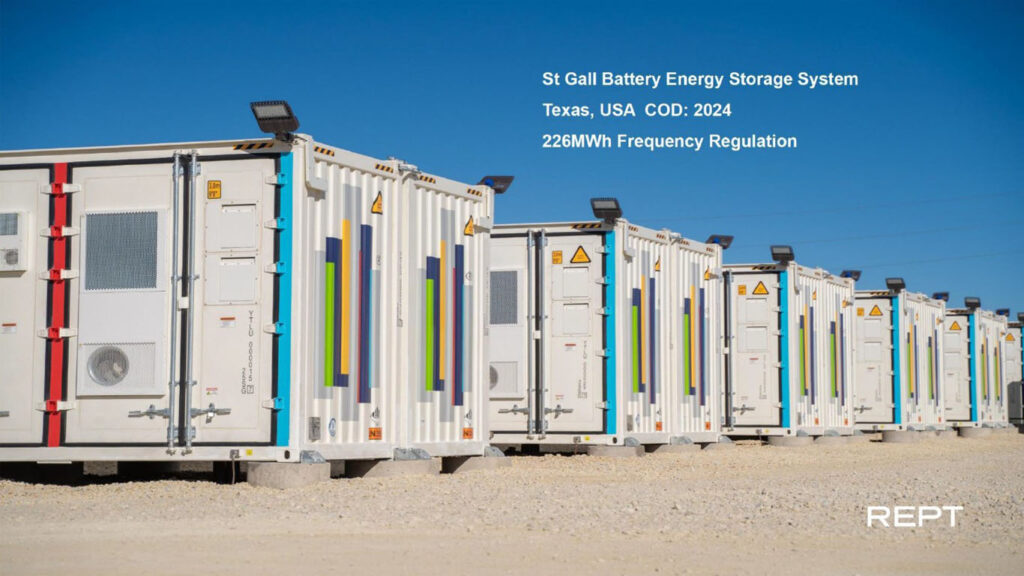

- ● 226 MWh Frequency Regulation
- ● Texas, USA
- ● COD: 2024

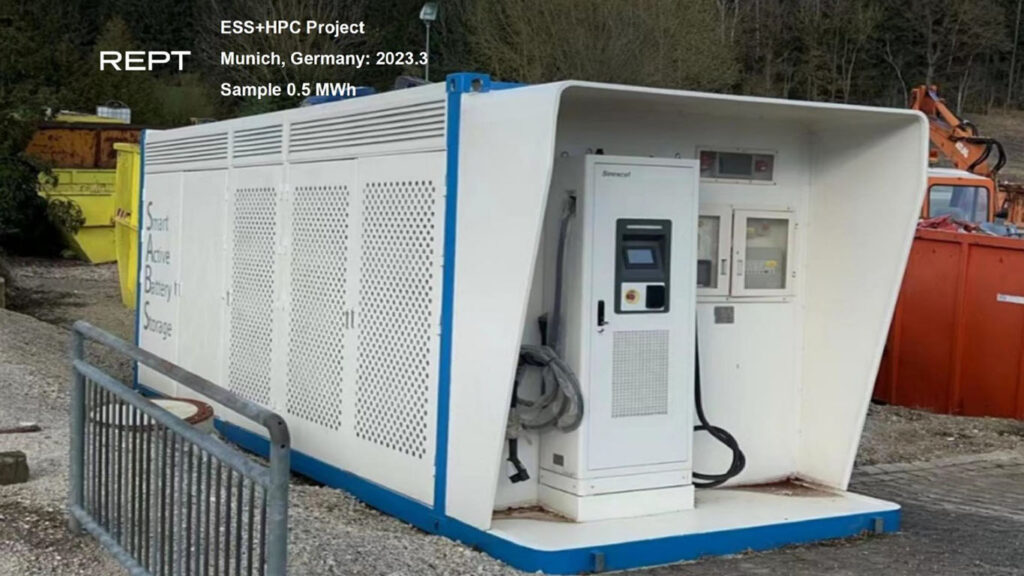

- ● ESS + HPC Project
- ● Sample 0.5 MWh
- ● Munich, Germany
- ● 1680 MWh Frequency Regulation
- ● Waratah Super Battery
- ● New South Wales, Australia

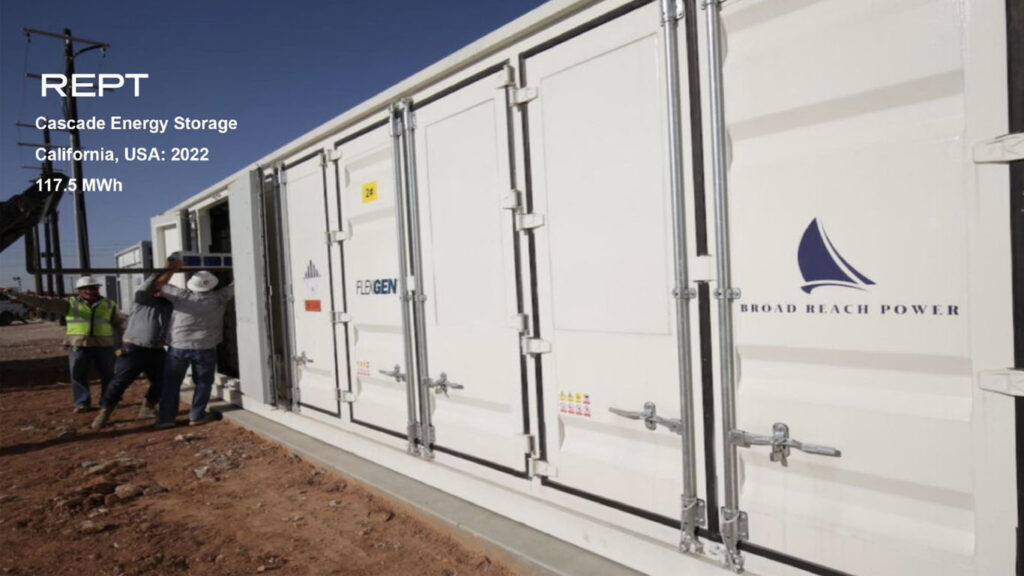

- ● Cascade Energy Storage
- ● 117.5 MWh
- ● California, USA

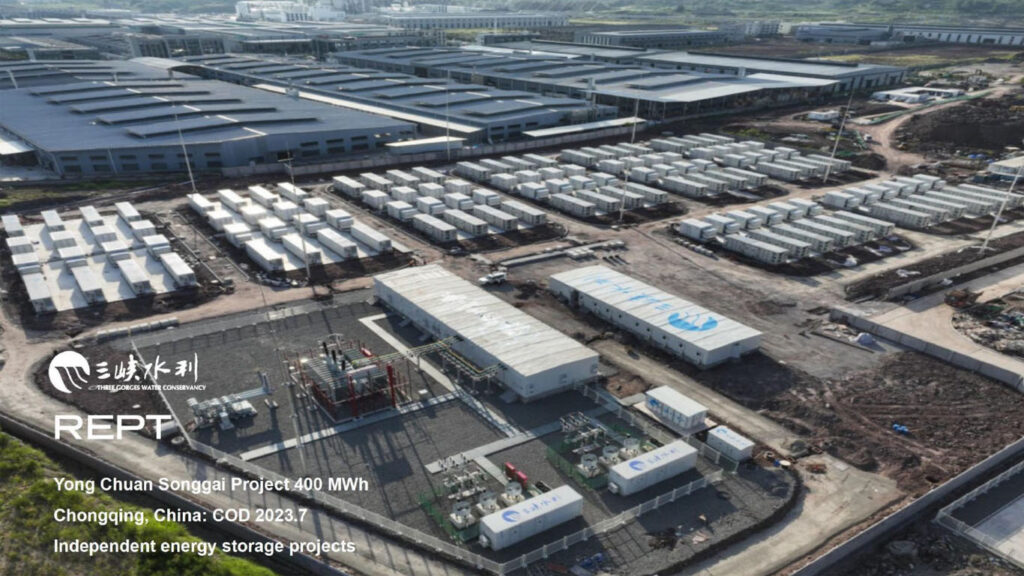

- ● Yong chuan Songgai Project 400 MWh
- ● Independent Energy Storage Project
- ● Chongqing, China
- ● Grid Power Regulation

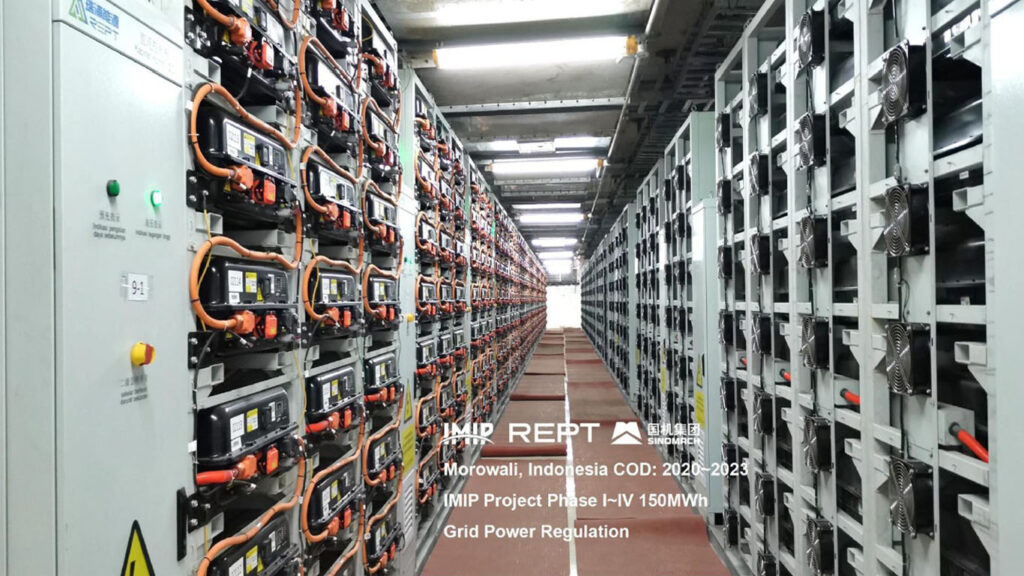

- ● IMIP Project Phase I-IV 150 MWh
- ● Morowell, Indonesia
Global Presence and Capacity
206 GWh
capacity across multiple locations
(Wenzhou, Liuzhou, Foshan, Chongqing)
50 GWh
planned capacity
40 GWh
planned capacity
40 GWh
planned capacity
Under investigation for future expansion

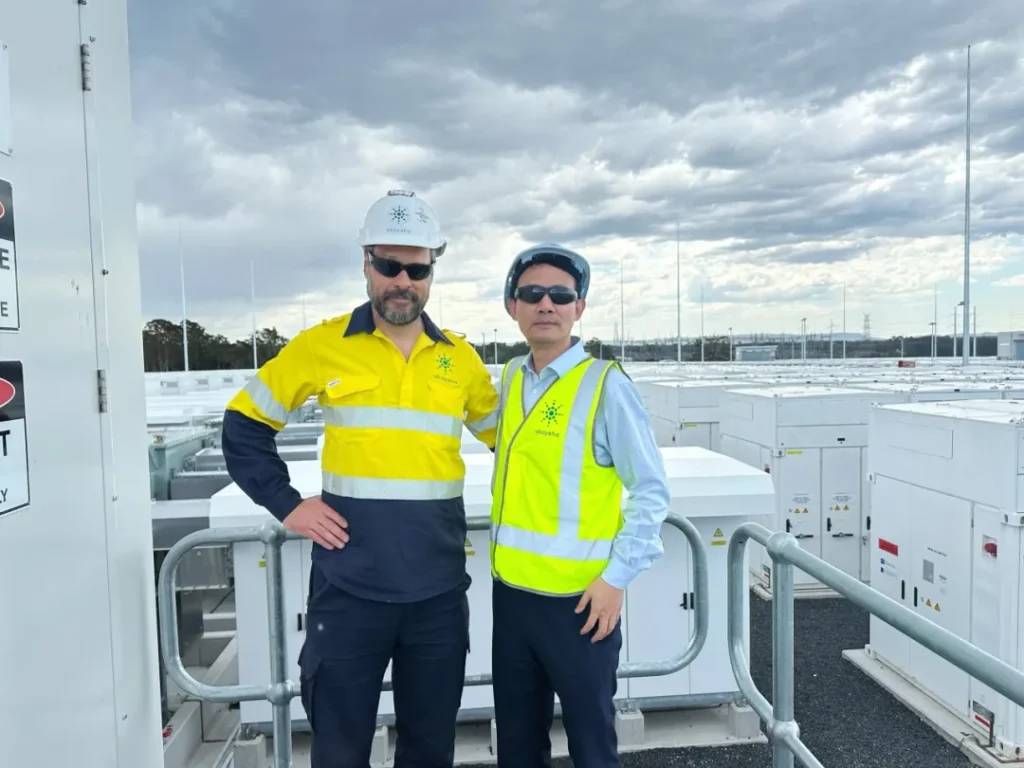

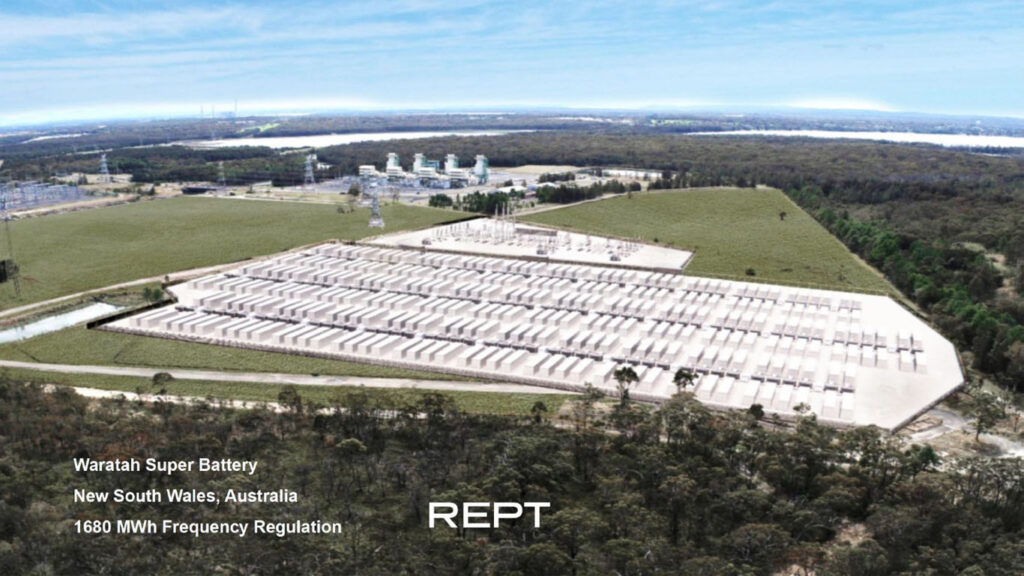

REPT X Waratah Super Battery Site
Sydney, Australia

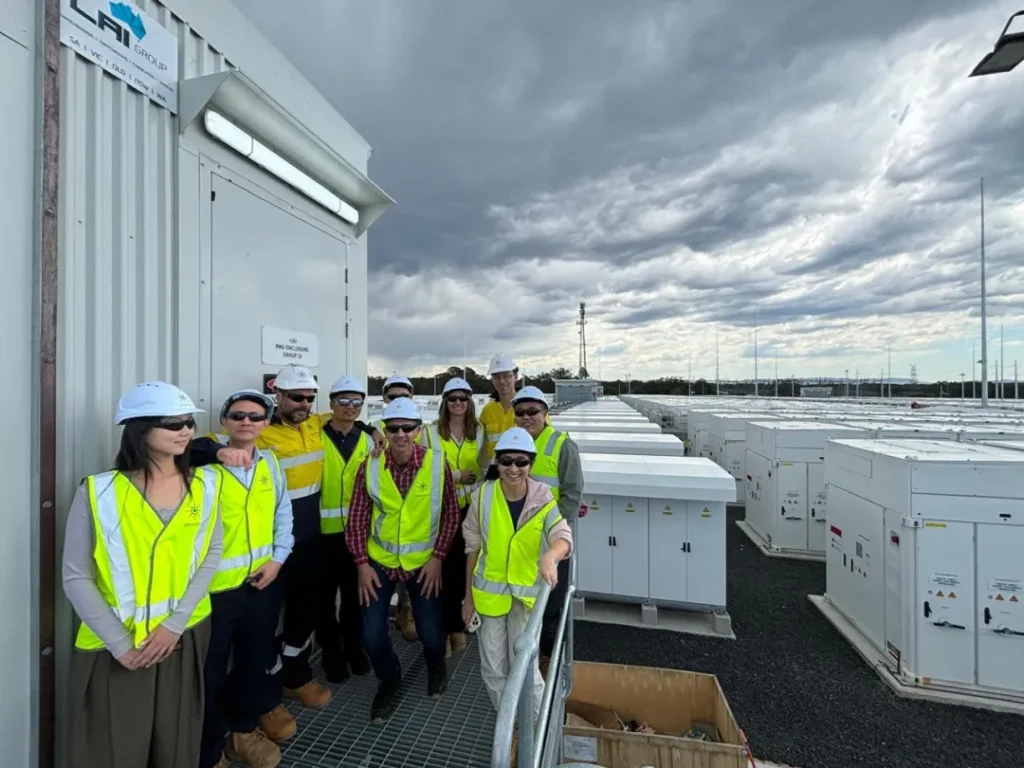

On October 29, 2024, REPT BATTERO visited the Waratah Super Battery site in Australia. REPT BATTERO is the primary battery supplier for this project. The tour was led by the CEO of Akaysha, with the director of engineering, the chairman, and the general manager of the US branch also in attendance.
The Waratah Super Battery site is situated about 100 kilometers north of Sydney. It stands as the largest battery project in the southern hemisphere and ranks among the most powerful battery projects globally. This project covers an area of 138,000 square meters and has a capacity of up to 850MW/1680MWh, of which REPT BATTERO supplied over 70% of the cells.

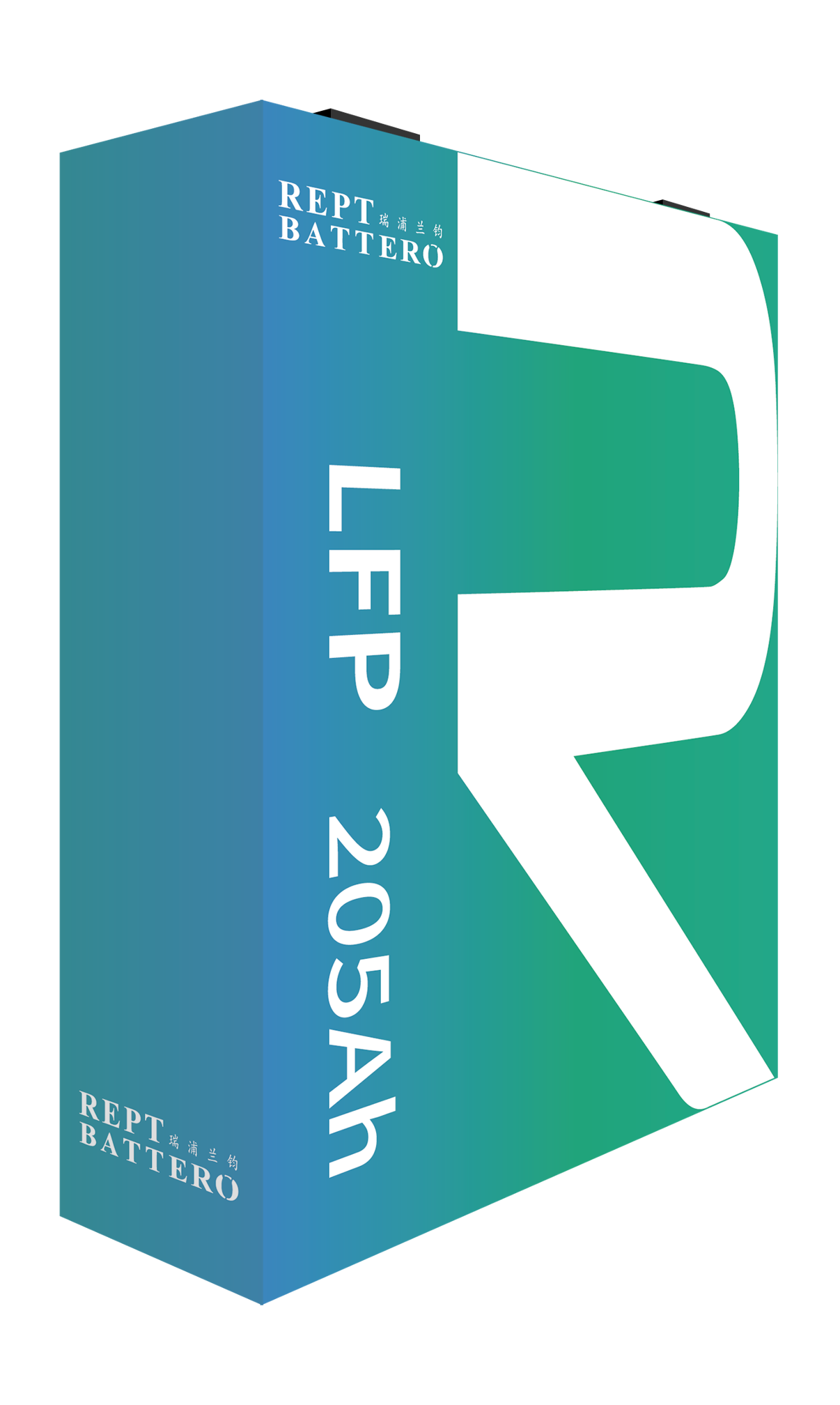

205Ah
280Ah
320Ah

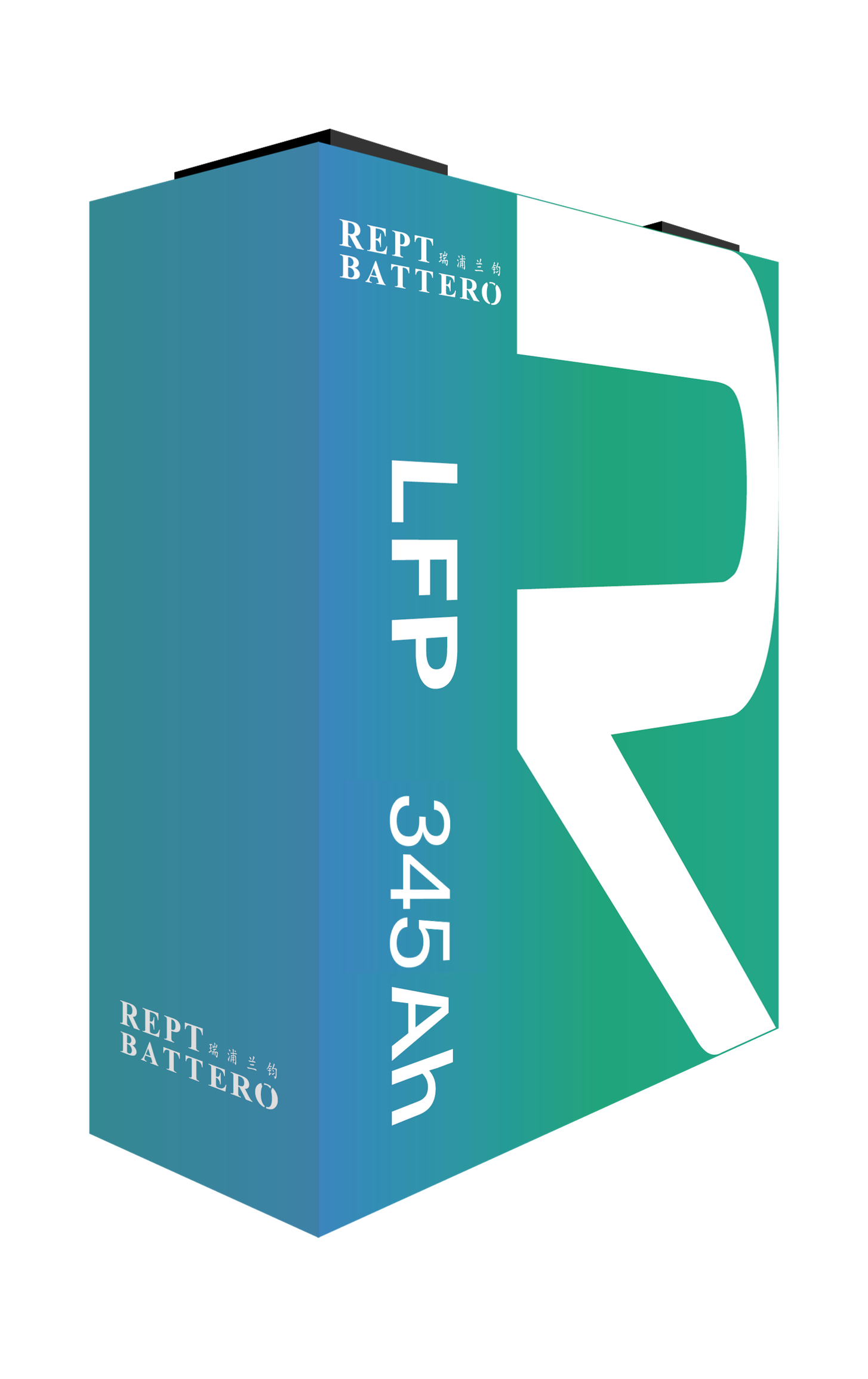

345Ah
Download Datasheet

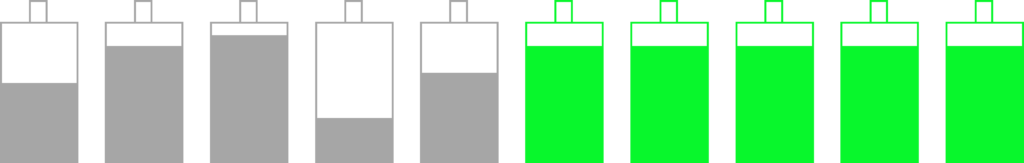

INTERNAL CIRCULATION SELF-BALANCING TECHNOLOGY
By using special additives in the battery, the POWER OF DIIFERENT CELLS can be flexibly adjusted during the charging process, so as to improve the consistency of power
WENDING EXCLUSIVE INNOVATION TECHNOLOGY
Adopt the ceiling cover design and fully fixed integrated ceiling structure Effectively improve the space utilization rate by more than 7%
HIGH SAFETY : NO U-BEND
More Stable & High Safety in Life Cycle
Traditional Battery
REPT WENDING CELL
- 5.015 MwH Container Each Module contain 104 Battery Cells arranged in 4 rows, 26 cells each Row
- Each Row, Coolant travel distance is 1.8655 Meter (cell thickness 7.175 CM, 26 Cells)
- REPT has 4 Coolant line for 4 rows. In market 1 coolant line for 4 rows (total distance is nearby 7.5 Meters
- REPT have minimum different cell temperature in the market thus helping equalized SOC, extended battery cell life
- REPT Liquid Cooled system has less energy consumption thanks to less friction loss in the coolant line

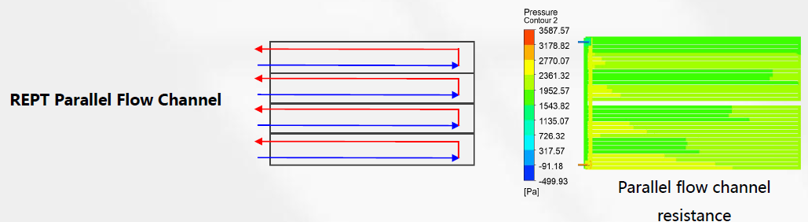

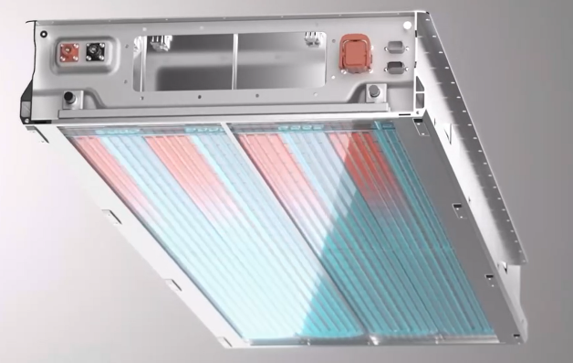

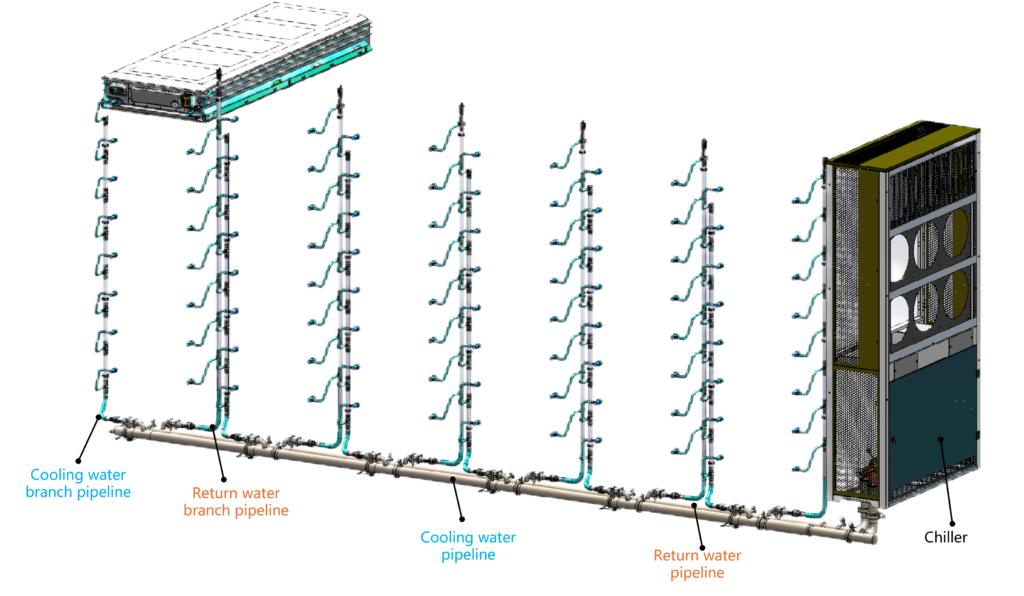

REPT PARALLEL Liquid-Cooled
Better Cell SOC, Less Power Consumption, Longer Life
PARALLELL Liquid-Cooled : REPT

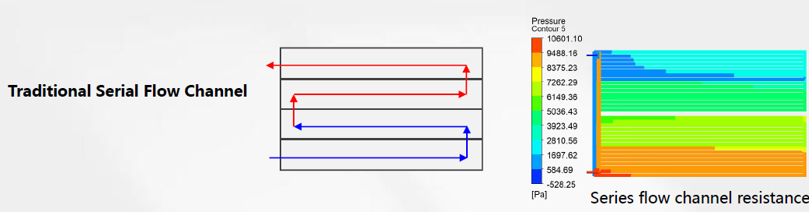

SERIES-Liquid-Cooled Pack in the Market

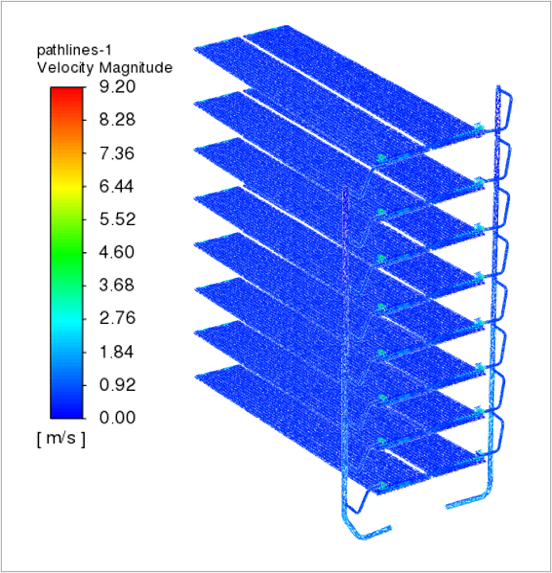

Parallel Coolant to ensure uniform Internal Flow

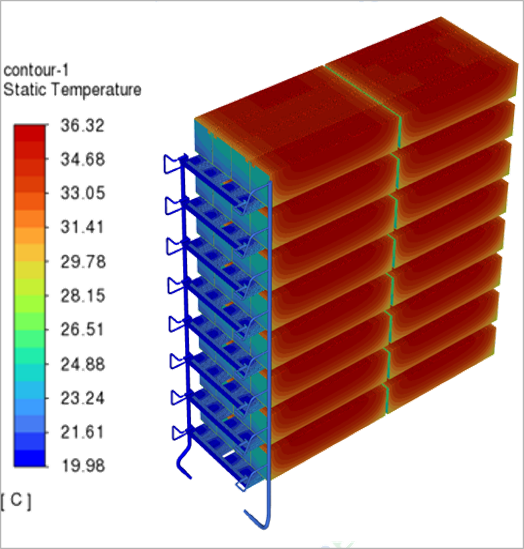

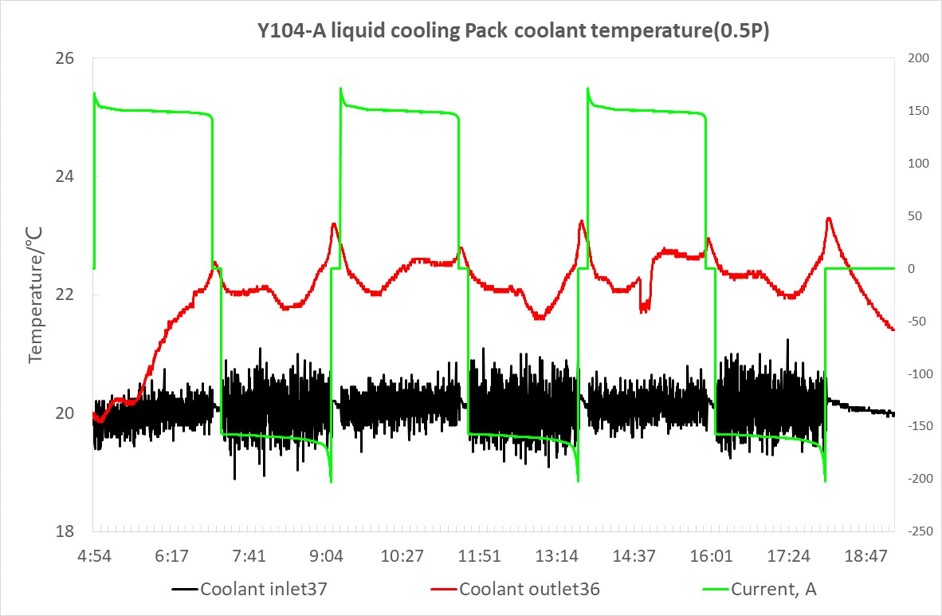

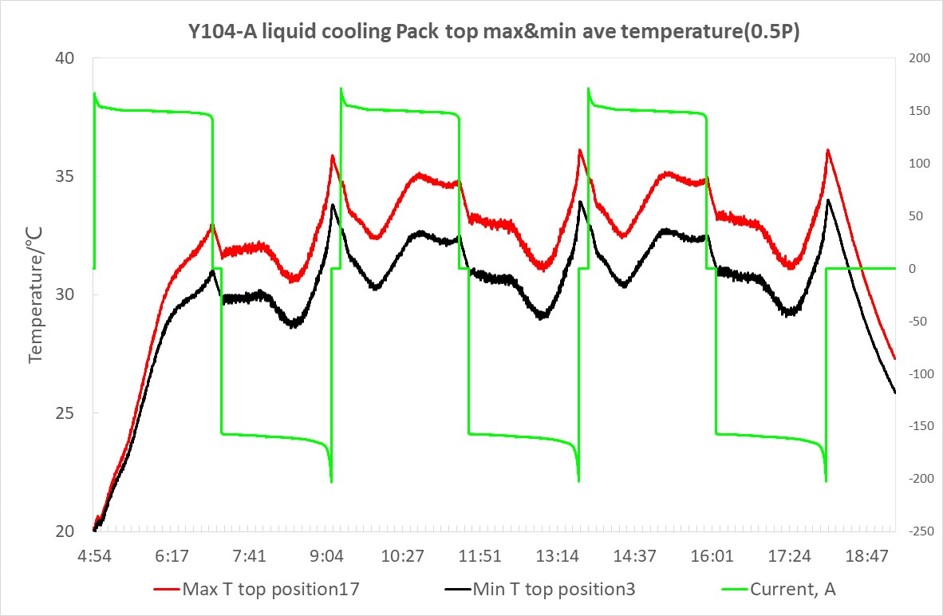

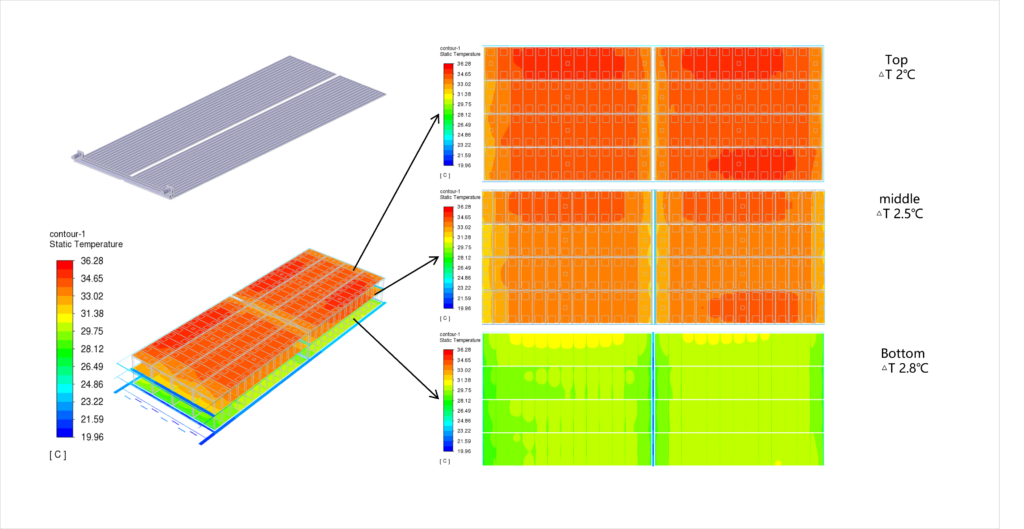

Proven by Thermal Testing Result
Maximum Temperature
36.2℃
Maximum Temperature Difference
2.8 ℃
Average Temperature (Coolant at the Inlet)
20.1℃
Average Temperature (Coolant at the Outlet)
22.1℃
Battery Pack (Module) : AEROSOL in the module
Each Module contain
Battery Cells
Each Module contain
Hot Aerosol
while in the market do not have Aerosol in the module
LEAK

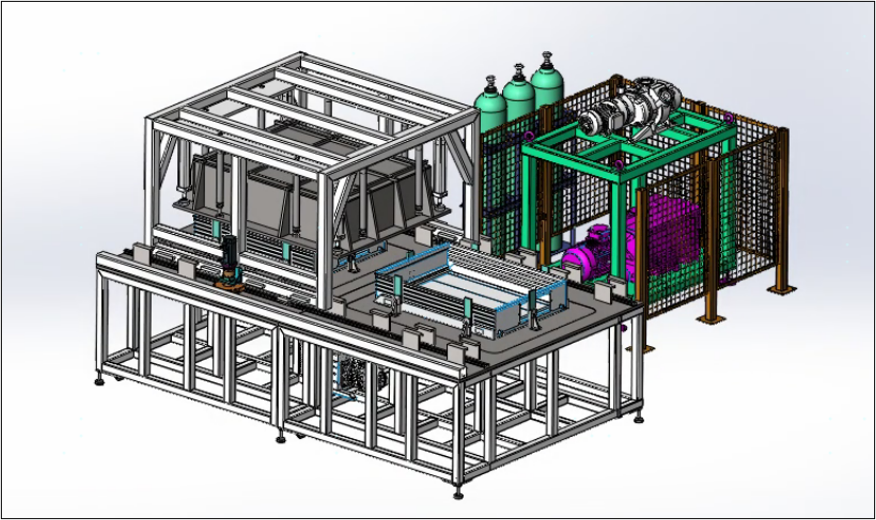

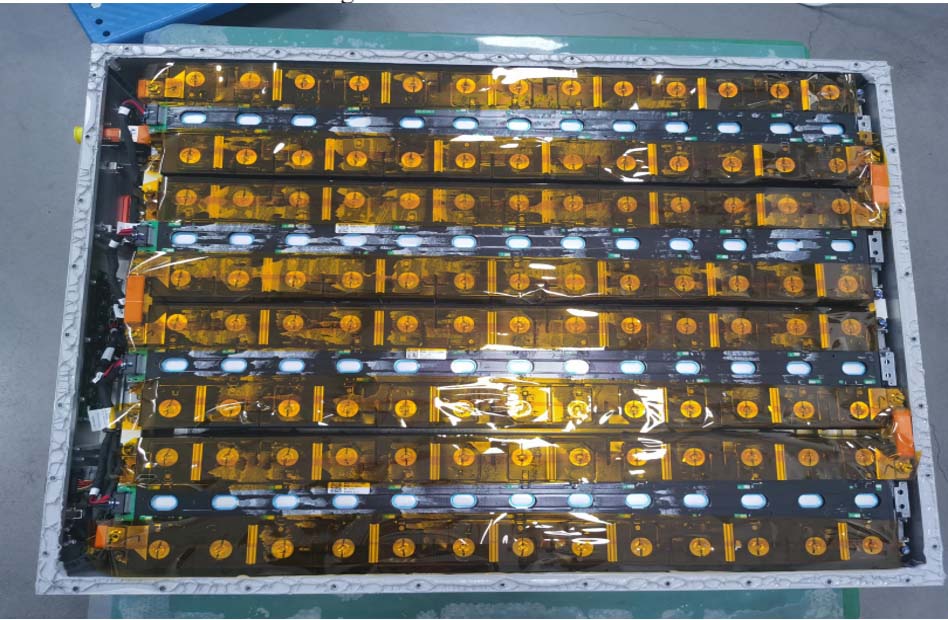

Helium Leakage Detection

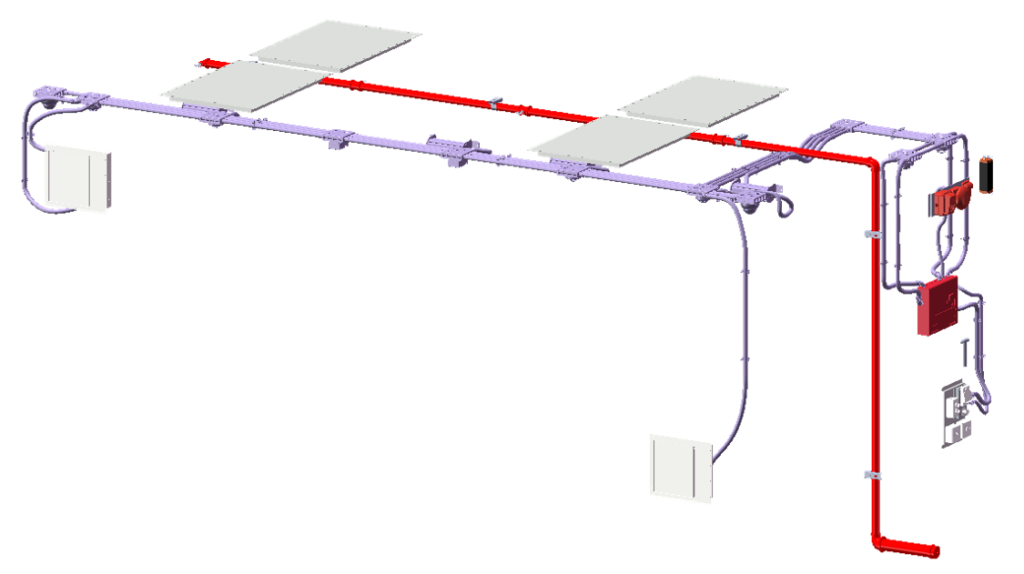

Suppression
at the module level, more Safety
Modules Level
No water vapor enters into the module while module in the market is IP65

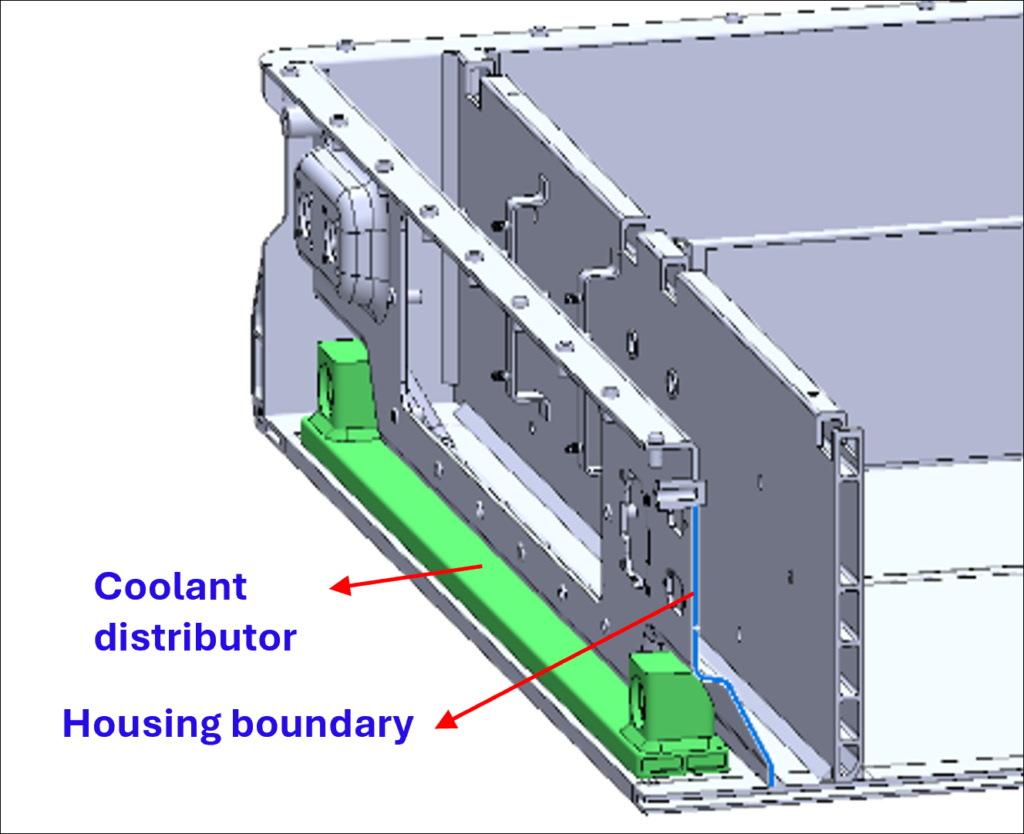

Distributor
Coolant is retained in the distributor and do not flow into the module

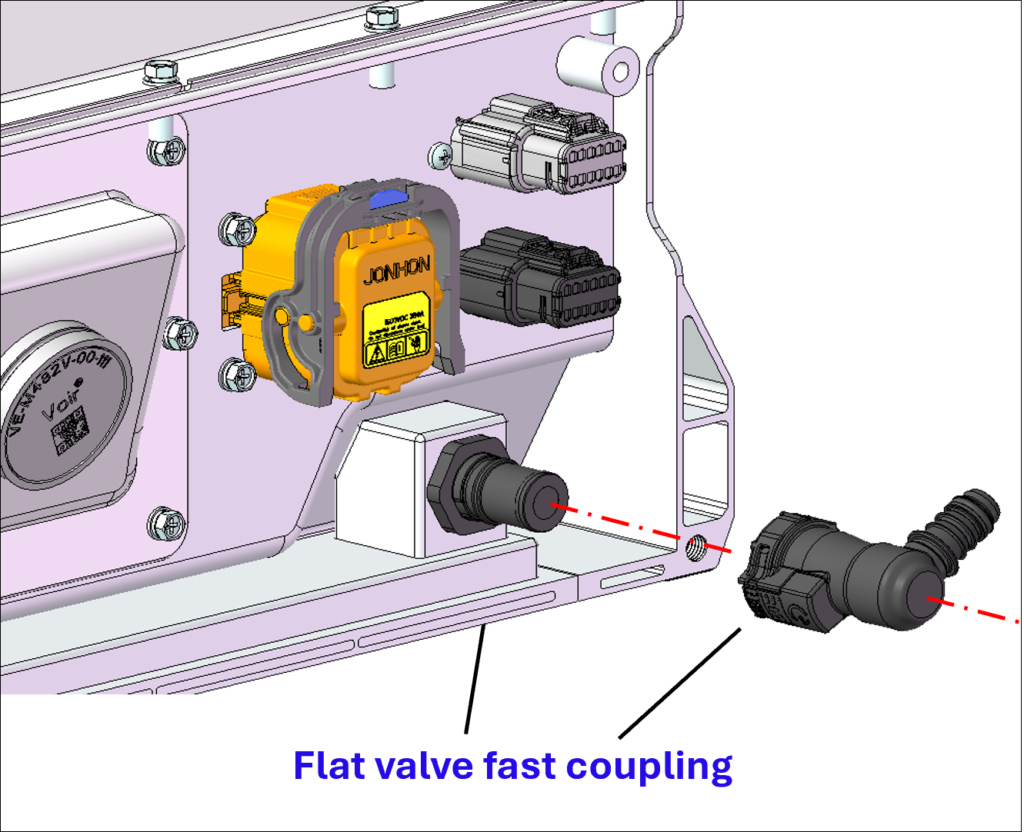

Plug & Play
Coupling Avoid Liquid Leakage , Convenient for Maintenance and module replacement
Cotton
at the bottom of the module
batteries Module
Heating cells in multiple locations at the same time in battery module.
batteries Module
Evaluate how many cells need to be thermal runaway, then fire break out.
With batteries
Use the same method at rack level, making several racks thermal runaway.
With batteries
Use the same method at rack level, making several racks thermal runaway.
With batteries
Use the same method at rack level, making several racks thermal runaway.

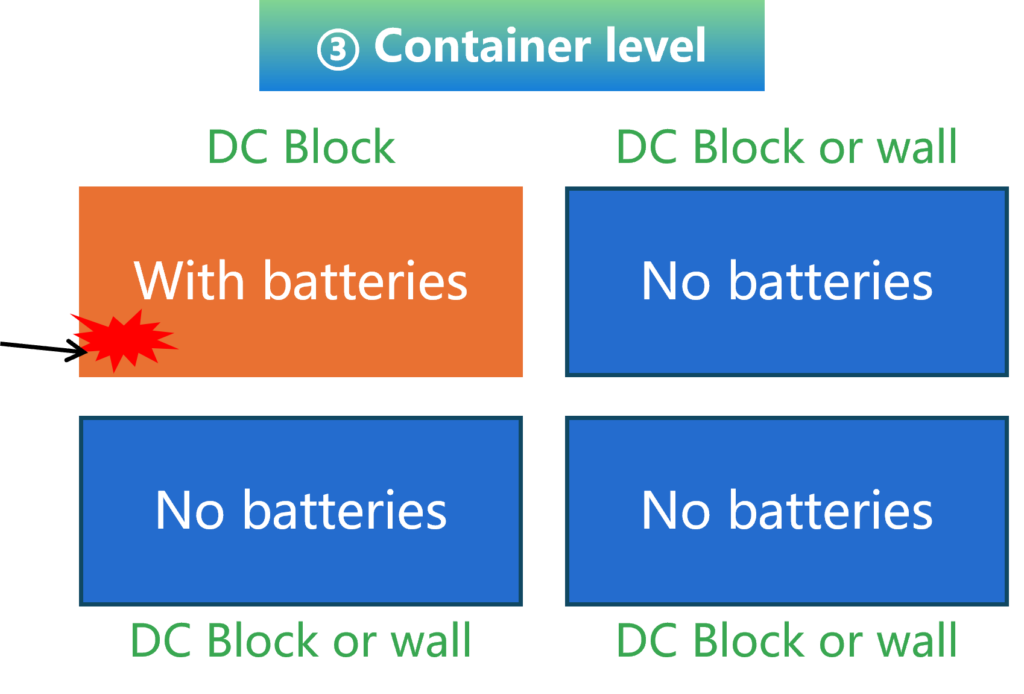

With batteries
Ensure that the fire spreads throughout the whole DC block.
Record the temperature on the surface of adjacent containers.
(＜cell venting temperature)
Record the heat flux on the surface of adjacent containers.
- If leakage occurs, the return pressure is lower than 0.4 bar, system low pressure alarm reported, the refill tank will pump coolant into the system, when the return pressure is higher than 0.4 bar, alarm eliminated
- When there is no more coolant in the refill tank, resulting in the return water pressure has been lower than 0.4 bar, it will report low pressure alarm and low liquid level alarm.

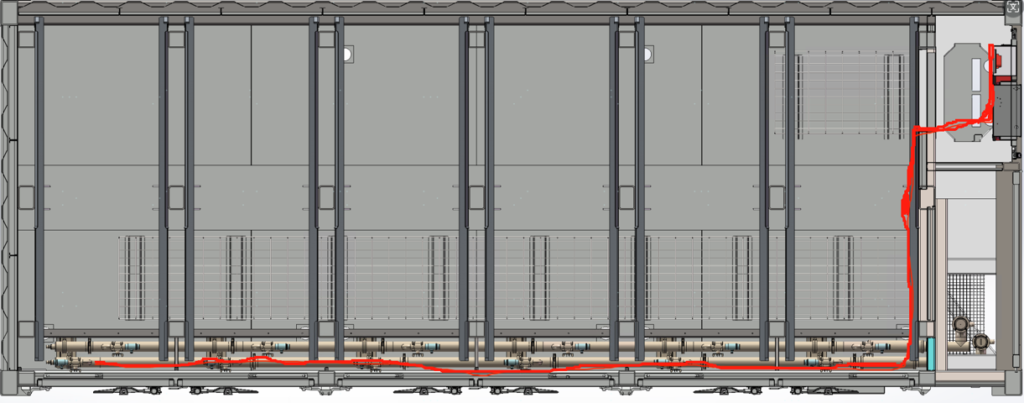

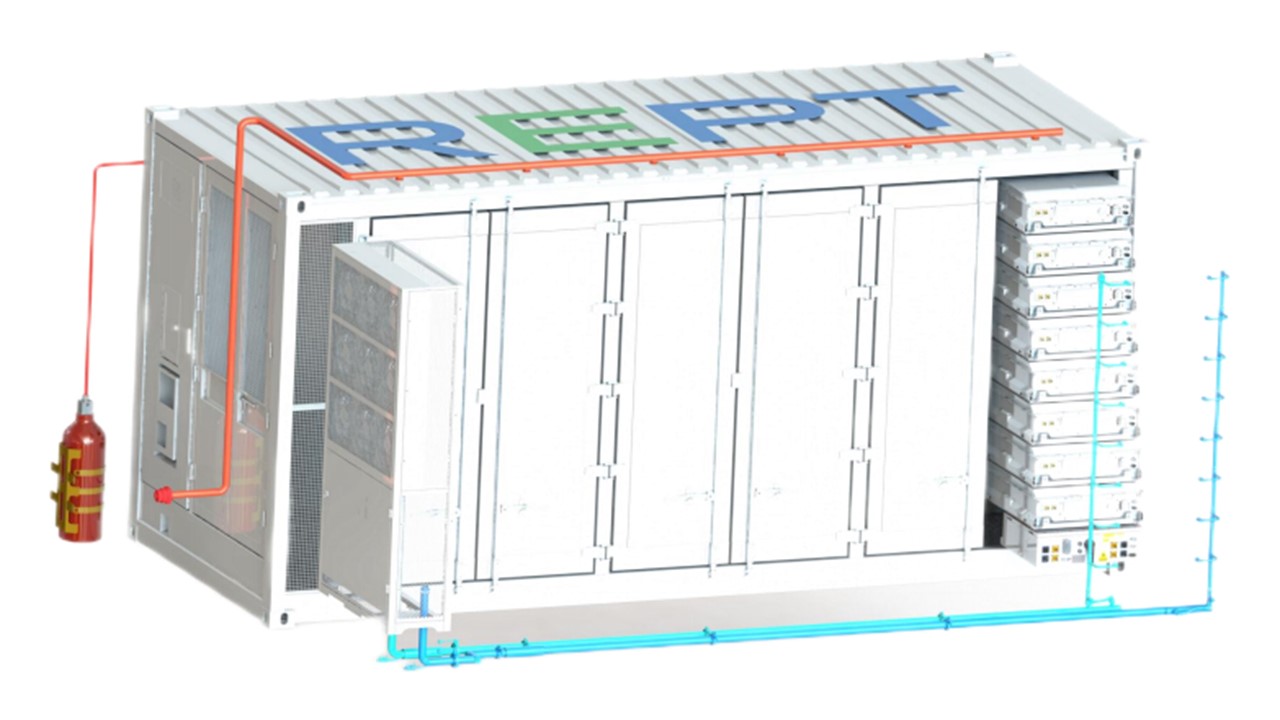

- 15 meters of flood line, wired at the bottom of the container, to detect any liquid leaks inside the container (Coolant distributor, Pipelines, Openings). See the red line in the left picture.
- Each container is equipped with 9 one-way floor drains. Liquid can leak out of the container, but will not enter from the outside, so water will not accumulate inside the container.
- 5 Protections in various electrical locations
- Fuses in various electrical locations
Our commitment to quality and safety is evident in our extensive testing procedures:
- High temperature and humidity cycling tests
- Helium leak detection at multiple stages
- Large-scale fire tests scheduled for comprehensive safety evaluation
Our systems meet or exceed international standards, including UL 9540, UL9540A, UL1973, IEC 62619, IEC 63056, IEC61000, IEC 62477, UN 38.3, NFPA68, and NFPA69.
REPT BATTERO's strength lies in our vertically integrated supply chain, spanning from raw material extraction to end-product manufacturing:
Lithium
: Sourced from Argentina and Zimbabwe
Nickel and Cobalt
: Produced in Indonesia
Cathode and Anode Materials
: Manufactured in China and Indonesia
Separator and Electrolyte
: Produced in various global locations
Cell, Module, and Pack Production
: State-of-the-art facilities across multiple countries
This comprehensive supply chain management ensures quality control, cost-effectiveness, and reliability at every stage of production.
REPT BATTERO is pioneering BESS innovation with our state-of-the-art DC Block technology. Our development roadmap showcases our clear vision for the future of energy storage:
DC Block Evolution:
- 2023: 3.7MWh 20ft HC with 280Ah cells
- 2024: 5.1MWh 20ft HC with 320Ah cells
- 2025: 5.5MWh 20ft HC with 345Ah cells
- 2026: Ambitious plans for 6.25MWh and 7.0MWh 20ft HC systems

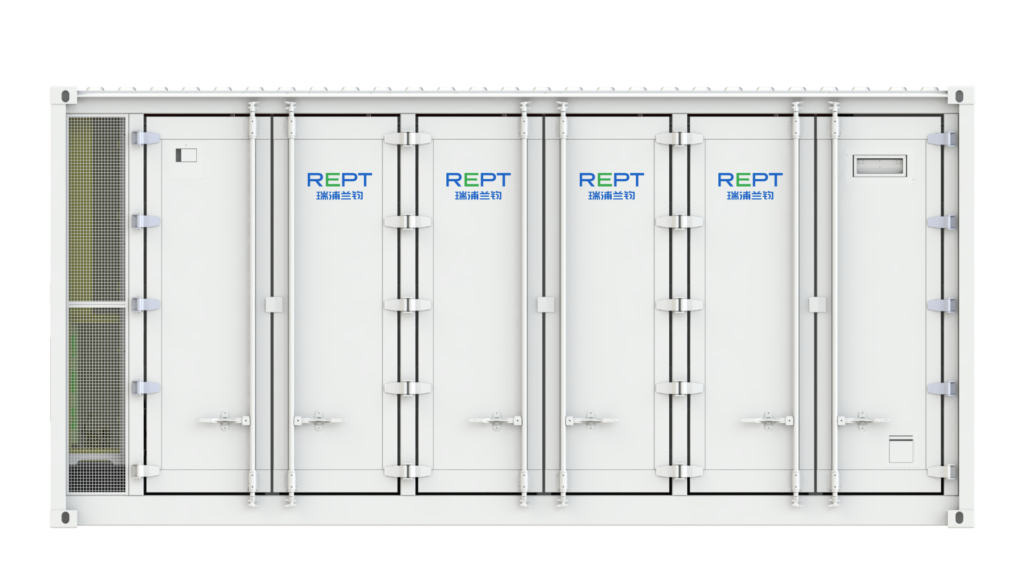

5.1MWh DC Block
- 320Ah Wending® Cell
- 1P416S configuration
- Rated DC voltage: 1,331.2V
- Dimensions: 6058L×2438W×2896H (20HQ ISO container)
5.5MWh DC Block
- 345Ah Wending® Cell
- 1P416S configuration
- Rated DC voltage: 1,331.2V
- Dimensions: 6058L×2438W×2896H (20HQ ISO container)
Both models feature advanced liquid cooling systems and comply with stringent industry standards including UL 9540, UL9540A, IEC 62619, and NFPA68/69.
Our latest DC Block design offers significant improvements over previous generations:

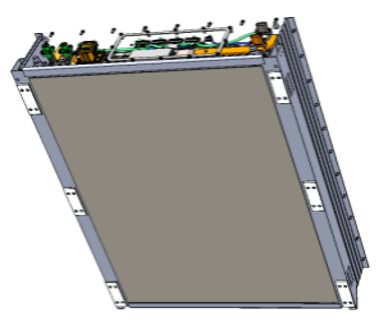

At the heart of our DC Block systems is the Y104 module:
REPT’s liquid cooling system sets new industry standards:
REPT BATTERO, a subsidiary of the Fortune 500 Global company Tsingshan Group, stands at the forefront of the energy storage revolution. As a key player in the global lithium-ion battery supply chain, we combine cutting-edge technology with a fully integrated supply chain to deliver world-class Battery Energy Storage Systems (BESS).
Tsingshan - Parent Company
Our parent company, Tsingshan Group, is a global leader in nickel and stainless steel production, providing us with unparalleled access to critical raw materials and manufacturing expertise.
Our BESS solutions have been adopted by leading companies worldwide:
– North America: Powin, ESS Inc., Honeywell
– Asia: Sungrow, Envision, Jinko
Our diverse customer base demonstrates the versatility and reliability of our energy storage solutions across various applications and markets.
REPT BATTERO’s DC Block technology represents the pinnacle of BESS innovation. With our continuous improvement roadmap and commitment to safety and efficiency, we’re not just meeting the energy storage needs of today – we’re shaping the power systems of tomorrow.
Choose REPT BATTERO for unmatched performance, reliability, and peace of mind in your energy storage solutions.

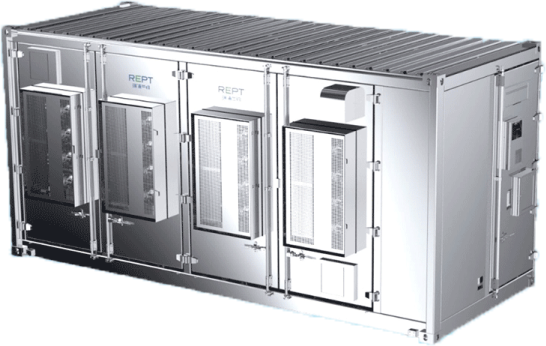

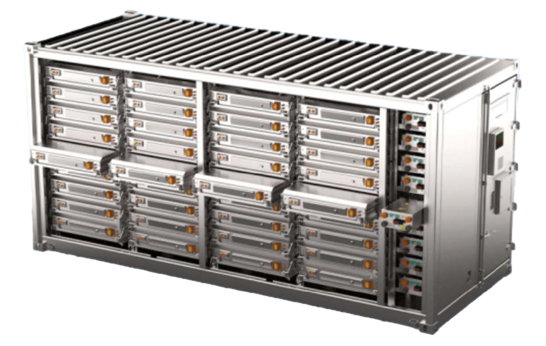

THE ART OF MATRIX
CHARGE TO CELL, FUTURE TO EXCEL
7.03MWh
Installed Energy
Large Cell
500Ah+
Land Investment Save
25%
Area Energy Density Increase by
40%
Transposition Layout Loading Enhancement
Zero Degradation High Efficiency

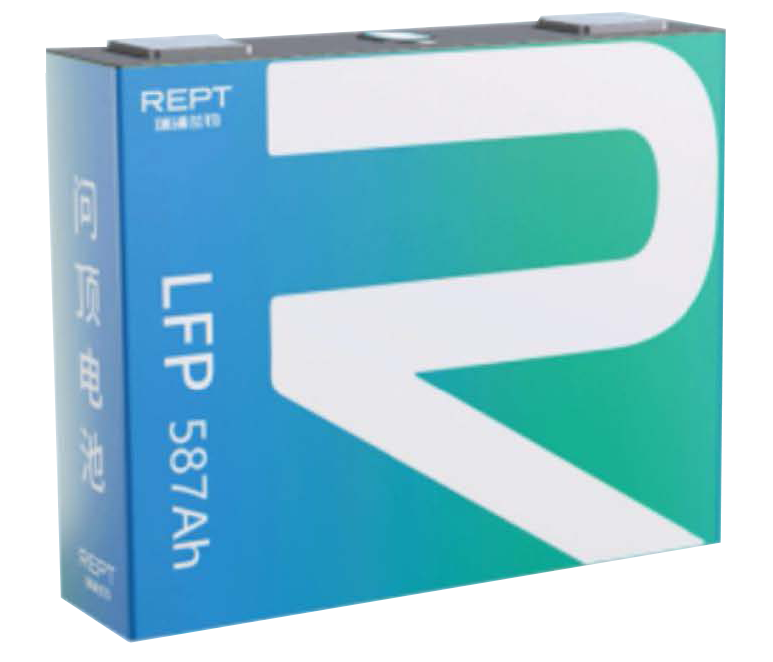

Ultra-large Capacity
587Ah
Ultra-high Efficiency
96.4%
Ultra-high Energy Density
430Wh/L
Super Durability
25-30 Years
Zero Degradation for 5 Years
